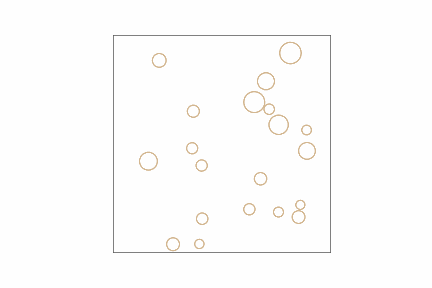

The purpose of this contribution is to simulate brown motion moves and collisions and save it e.g. to gif file by pillowwriter tool.
1. Theory
Brownian motion - the random motion of a particle as a result of collisions with surrounding atoms or molecules. Diffusiophoresis is the movement of a group of particles induced by a concentration gradient. This movement always flows from areas of high concentration to areas of low concentration. Observed by Scottish botanist Robert Brown.
Euler Maruyama method - method for the approximate numerical solution of a stochastic differential equation (SDE). It is an extension of the Euler method for ordinary differential equations to stochastic differential equations. It is named after Leonhard Eulerand Gisiro Maruyama. Unfortunately, the same generalization cannot be done for any arbitrary deterministic method.
Geometric (exponential) brownian motion - stochastic process, is a continuous-time stochastic, the logarithm of the randomly varying quantity follows a Brownian motion.
Perfect elasticity - the price is the same (constant), no matter what the quantity is. Perfectly inelastic demand is e.g. the demand for cheap essential goods, salt or water i safe locations.
Wiener process - the same as brown motion, but observed by American mathematician Norbert Wiener.
2. Python code
pip install collision
import collision
import pygame
import random
import operator
from itertools import combinations
from collision import *
import physics as pf
import pygame.gfxdraw
from itertools import combinations
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib import animation
from itertools import combinations
from matplotlib.animation import FuncAnimation, PillowWriter
from IPython.display import HTML
from matplotlib import rc
class Particle:
"""A class representing a two-dimensional particle."""
def __init__(self, x, y, vx, vy, radius=0.01, styles=None):
"""Initialize the particle's position, velocity, and radius.
Any key-value pairs passed in the styles dictionary will be passed
as arguments to Matplotlib's Circle patch constructor.
"""
self.r = np.array((x, y))
self.v = np.array((vx, vy))
self.radius = radius
self.mass = self.radius**2
self.styles = styles
if not self.styles:
# Default circle styles
self.styles = {'edgecolor': 'b', 'fill': False}
# For convenience, map the components of the particle's position and
# velocity vector onto the attributes x, y, vx and vy.
@property
def x(self):
return self.r[0]
@x.setter
def x(self, value):
self.r[0] = value
@property
def y(self):
return self.r[1]
@y.setter
def y(self, value):
self.r[1] = value
@property
def vx(self):
return self.v[0]
@vx.setter
def vx(self, value):
self.v[0] = value
@property
def vy(self):
return self.v[1]
@vy.setter
def vy(self, value):
self.v[1] = value
def overlaps(self, other):
"""Does the circle of this Particle overlap that of other?"""
return np.hypot(*(self.r - other.r)) < self.radius + other.radius
def draw(self, ax):
"""Add this Particle's Circle patch to the Matplotlib Axes ax."""
circle = Circle(xy=self.r, radius=self.radius, **self.styles)
ax.add_patch(circle)
return circle
def advance(self, dt):
"""Advance the Particle's position forward in time by dt."""
self.r += self.v * dt
class Simulation:
"""A class for a simple hard-circle molecular dynamics simulation.
The simulation is carried out on a square domain: 0 <= x < 1, 0 <= y < 1.
"""
ParticleClass = Particle
def __init__(self, n, radius=0.01, styles=None):
"""Initialize the simulation with n Particles with radii radius.
radius can be a single value or a sequence with n values.
Any key-value pairs passed in the styles dictionary will be passed
as arguments to Matplotlib's Circle patch constructor when drawing
the Particles.
"""
self.init_particles(n, radius, styles)
self.dt = 0.01
def place_particle(self, rad, styles):
# Choose x, y so that the Particle is entirely inside the
# domain of the simulation.
x, y = rad + (1 - 2*rad) * np.random.random(2)
# Choose a random velocity (within some reasonable range of
# values) for the Particle.
vr = 0.1 * np.sqrt(np.random.random()) + 0.05
vphi = 2*np.pi * np.random.random()
vx, vy = vr * np.cos(vphi), vr * np.sin(vphi)
particle = self.ParticleClass(x, y, vx, vy, rad, styles)
# Check that the Particle doesn't overlap one that's already
# been placed.
for p2 in self.particles:
if p2.overlaps(particle):
break
else:
self.particles.append(particle)
return True
return False
def init_particles(self, n, radius, styles=None):
"""Initialize the n Particles of the simulation.
Positions and velocities are chosen randomly; radius can be a single
value or a sequence with n values.
"""
try:
iterator = iter(radius)
assert n == len(radius)
except TypeError:
# r isn't iterable: turn it into a generator that returns the
# same value n times.
def r_gen(n, radius):
for i in range(n):
yield radius
radius = r_gen(n, radius)
self.n = n
self.particles = []
for i, rad in enumerate(radius):
# Try to find a random initial position for this particle.
while not self.place_particle(rad, styles):
pass
def change_velocities(self, p1, p2):
"""
Particles p1 and p2 have collided elastically: update their
velocities.
"""
m1, m2 = p1.mass, p2.mass
M = m1 + m2
r1, r2 = p1.r, p2.r
d = np.linalg.norm(r1 - r2)**2
v1, v2 = p1.v, p2.v
u1 = v1 - 2*m2 / M * np.dot(v1-v2, r1-r2) / d * (r1 - r2)
u2 = v2 - 2*m1 / M * np.dot(v2-v1, r2-r1) / d * (r2 - r1)
p1.v = u1
p2.v = u2
def handle_collisions(self):
"""Detect and handle any collisions between the Particles.
When two Particles collide, they do so elastically: their velocities
change such that both energy and momentum are conserved.
"""
# We're going to need a sequence of all of the pairs of particles when
# we are detecting collisions. combinations generates pairs of indexes
# into the self.particles list of Particles on the fly.
pairs = combinations(range(self.n), 2)
for i,j in pairs:
if self.particles[i].overlaps(self.particles[j]):
self.change_velocities(self.particles[i], self.particles[j])
def handle_boundary_collisions(self, p):
"""Bounce the particles off the walls elastically."""
if p.x - p.radius < 0:
p.x = p.radius
p.vx = -p.vx
if p.x + p.radius > 1:
p.x = 1-p.radius
p.vx = -p.vx
if p.y - p.radius < 0:
p.y = p.radius
p.vy = -p.vy
if p.y + p.radius > 1:
p.y = 1-p.radius
p.vy = -p.vy
def apply_forces(self):
"""Override this method to accelerate the particles."""
pass
def advance_animation(self):
"""Advance the animation by dt, returning the updated Circles list."""
for i, p in enumerate(self.particles):
p.advance(self.dt)
self.handle_boundary_collisions(p)
self.circles[i].center = p.r
self.handle_collisions()
self.apply_forces()
return self.circles
def advance(self):
"""Advance the animation by dt."""
for i, p in enumerate(self.particles):
p.advance(self.dt)
self.handle_boundary_collisions(p)
self.handle_collisions()
self.apply_forces()
def init(self):
"""Initialize the Matplotlib animation."""
self.circles = []
for particle in self.particles:
self.circles.append(particle.draw(self.ax))
return self.circles
def animate(self, i):
"""The function passed to Matplotlib's FuncAnimation routine."""
self.advance_animation()
return self.circles
def setup_animation(self):
self.fig, self.ax = plt.subplots()
for s in ['top','bottom','left','right']:
self.ax.spines[s].set_linewidth(0.5)
self.ax.set_aspect('equal', 'box')
self.ax.set_xlim(0, 1)
self.ax.set_ylim(0, 1)
self.ax.xaxis.set_ticks([])
self.ax.yaxis.set_ticks([])
def save_or_show_animation(self, anim, save, filename='collision.mp4'):
if save:
Writer = animation.writers['ffmpeg']
writer = Writer(fps=10, bitrate=1800)
anim.save(filename, writer=writer)
else:
plt.show()
def do_animation(self, save=False, interval=1, filename='collision.mp4'):
"""Set up and carry out the animation of the molecular dynamics.
To save the animation as a MP4 movie, set save=True.
"""
self.setup_animation()
anim = animation.FuncAnimation(self.fig, self.animate,
init_func=self.init, frames=800, interval=interval, blit=True)
anim.save("brown.gif", dpi=250, writer=PillowWriter(fps=20))
self.save_or_show_animation(anim, save, filename)
if __name__ == '__main__':
nparticles = 20
radii = np.random.random(nparticles)*0.03+0.02
styles = {'edgecolor': 'tan', 'linewidth': 1, 'fill': None}
sim = Simulation(nparticles, radii, styles)
sim.do_animation(save=True, filename='brownian.mp4')
3. References
https://medium.com/@polanitzer/geometric-brownian-motion-in-python-predict-the-bitcoin-prices-6d7e34d9b407
https://towardsdatascience.com/how-to-simulate-financial-portfolios-with-python-d0dc4b52a278
https://towardsdatascience.com/how-to-simulate-a-stock-market-with-less-than-10-lines-of-python-code-5de9336114e5
https://stackoverflow.com/questions/45021301/geometric-brownian-motion-simulation-in-python
https://stackoverflow.com/questions/61569019/plotting-gbm-issues
https://ipython-books.github.io/133-simulating-a-brownian-motion/
https://en.wikipedia.org/wiki/Euler–Maruyama_method
https://github.com/mCodingLLC/VideosSampleCode/tree/master/videos
https://www.youtube.com/watch?v=hqSnruUe3tA
https://www.codearmo.com/blog/pricing-options-monte-carlo-simulation-python
https://en.wikipedia.org/wiki/Brownian_motion
https://towardsdatascience.com/animated-visualization-of-brownian-motion-in-python-3518ecf28533
https://www.sciencedirect.com/topics/chemistry/brownian-motion
https://medium.com/analytics-vidhya/modelling-geometric-brownian-motion-in-python-b65462cc2c1d
https://github.com/neilyejjey1999/yejjeyprojects/blob/main/FIN5615_Project_2_Neil_Yejjey.ipynb
https://github.com/cantaro86/Financial-Models-Numerical-Methods
https://github.com/cantaro86/Financial-Models-Numerical-Methods/blob/master/1.1%20Black-Scholes%20numerical%20methods.ipynb
https://scipython.com/blog/two-dimensional-collisions/
https://medium.com/analytics-vidhya/building-a-monte-carlo-method-stock-price-simulator-with-geometric-brownian-motion-and-bootstrap-e346ff464894
https://en.wikipedia.org/wiki/Wiener_process
